Maintenance and Troubleshooting

82 Runco VX-44d/-55d Owner’s Operating Manual

PRE

IMINAR

5.2

Lens Replacement

If you need to remove the lens – either to replace it or to prepare the projector for

shipment – proceed as follows:

1. Power down the projector and wait five minutes to allow the lamp to cool.

2. Remove the secondary anamorphic lens, if present.

3. Place the lens cap on the installed lens to protect it from damage.

4. Press and hold the “lens release” button located in the top right corner of the lens

panel.

5. Grasping the lens barrel, turn it in a counter-clockwise direction until it stops. Then,

pull it forward to remove it (disconnects from the connector assembly).

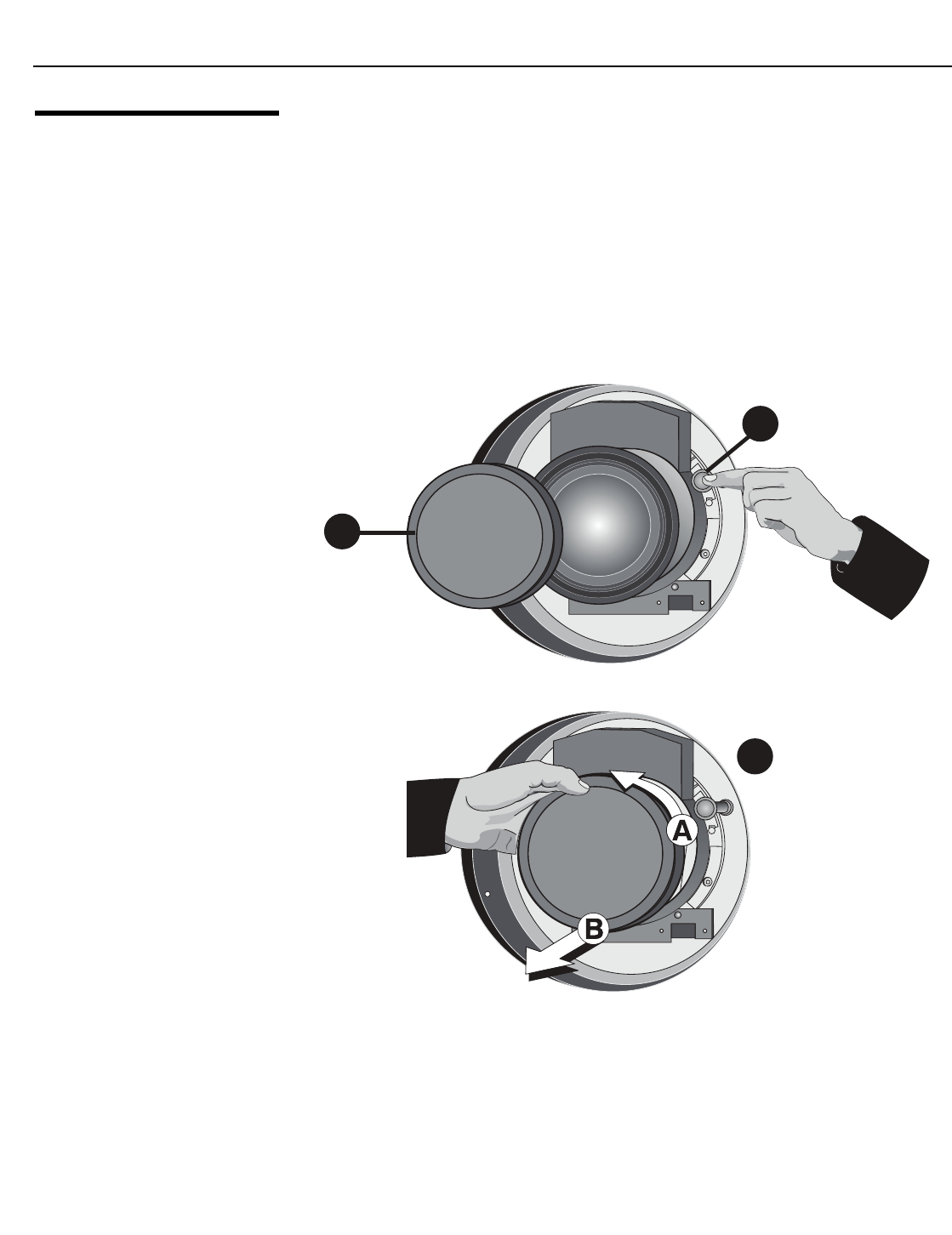

Figure 5-6. Removing the Primary Lens

Note: The connector assembly moves as you turn the lens.
